Two-Plane Quick-Change Wire Straightener for Schleuniger Machines (WS-18) 18-Roll

⚙ Note on Compatibility:  This straightener's mount fits newer Schleuniger machine models such as the E300 and E400. Please check your machine's bolt pattern before ordering. This version is for the 4 x M6 (40 mm spacing) rectangular bolt pattern.  Refer to the PDF drawing below to confirm fit. (Need the older version mount?  Check here.)

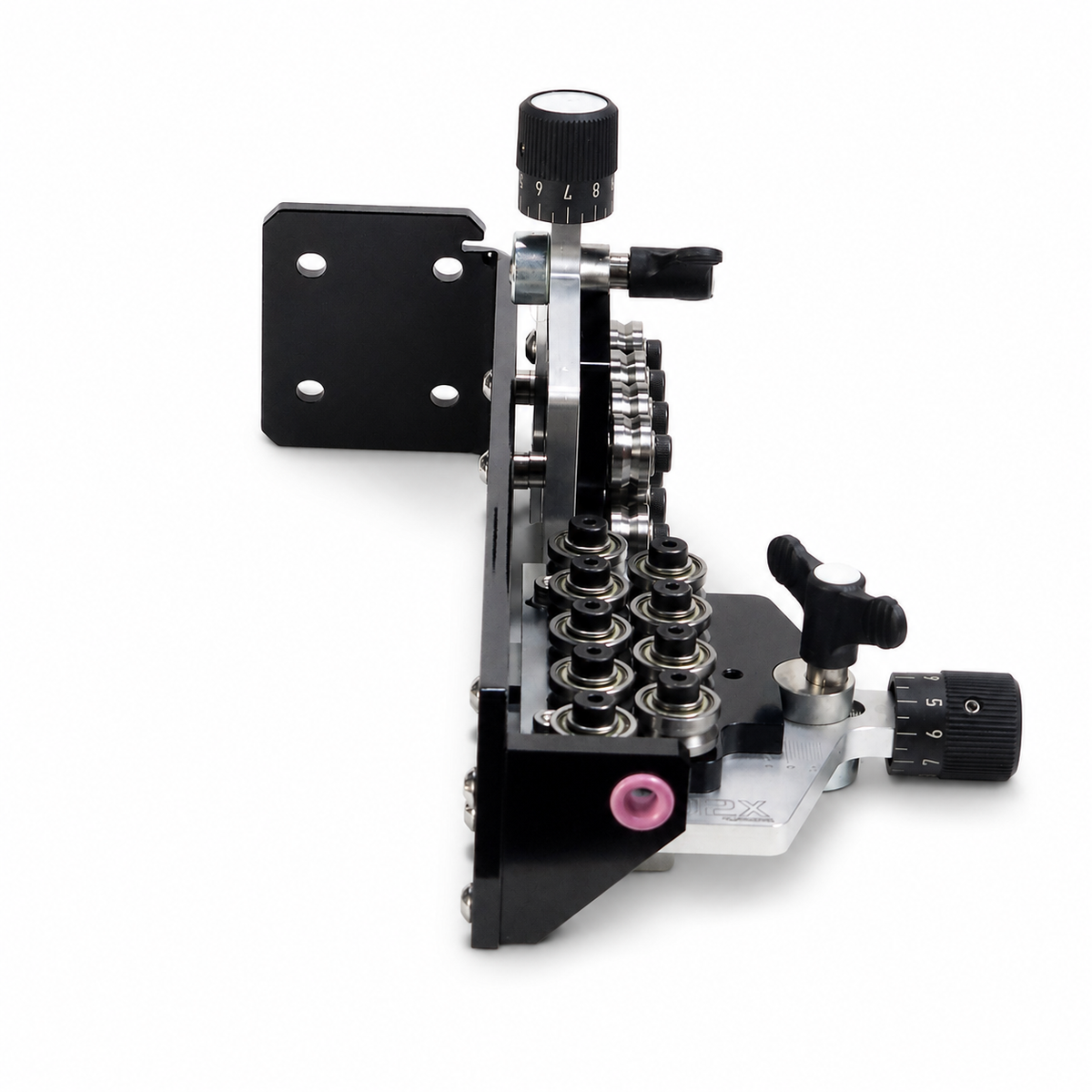

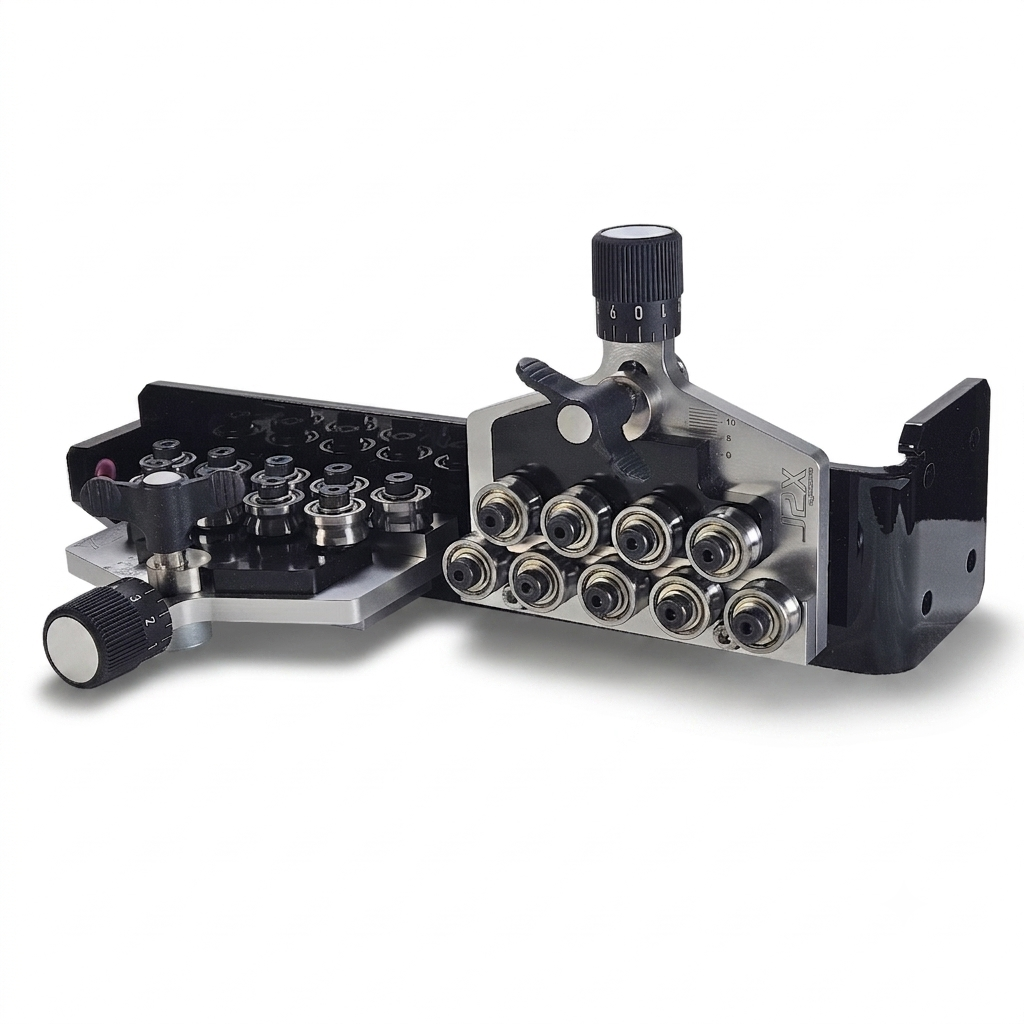

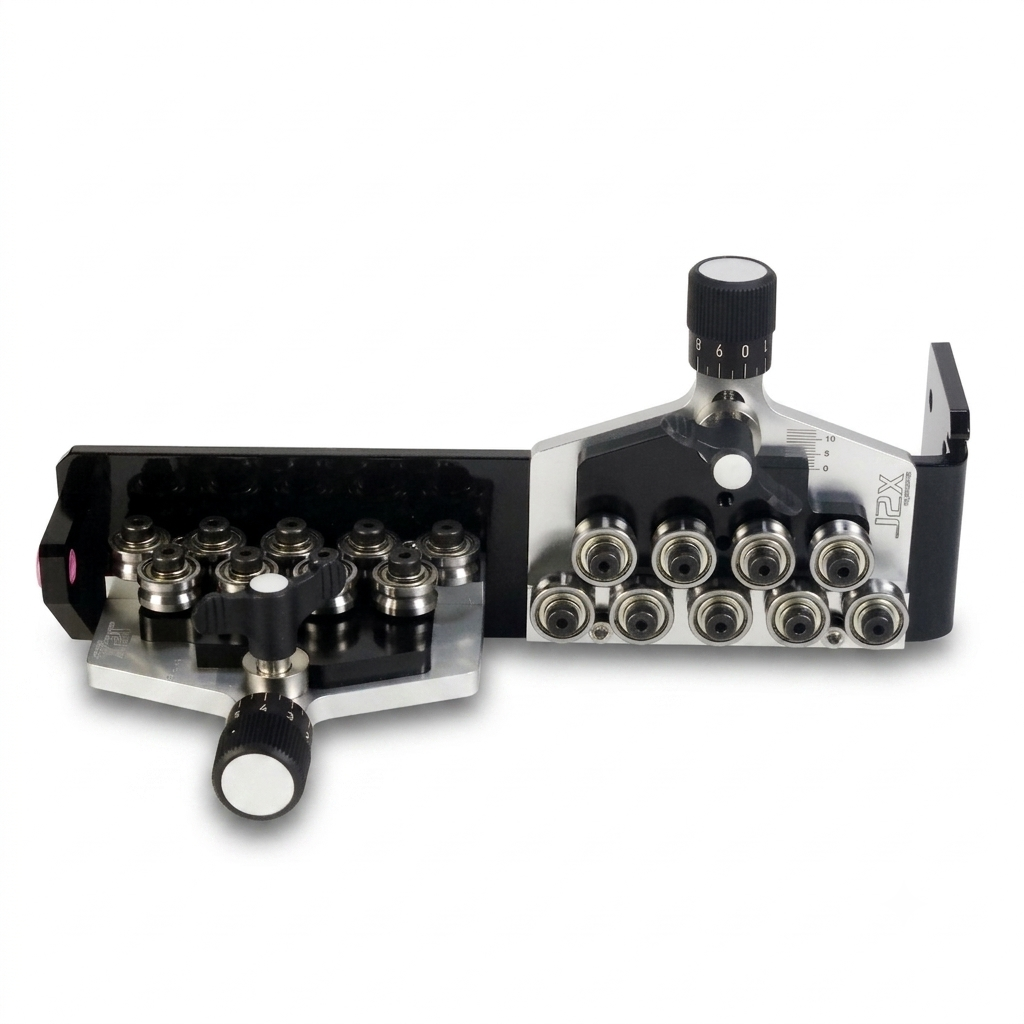

This wire straightener features a two-plane, 9-rolls-per-plane design with quick change capability, this straightener is suitable for mid-size wire and can be easily adjusted for multiple wire sizes.  It is designed to mount directly to a Schleuniger cut and strip machine (see compatibility below).  The approximate material size range is 10-26 AWG, but actual capability will depend on your wire construction and outside diameter.

Design and capability details:

• Entry point includes a ceramic insert for safe handling of your cable and durability of the guide.

Compatibility:

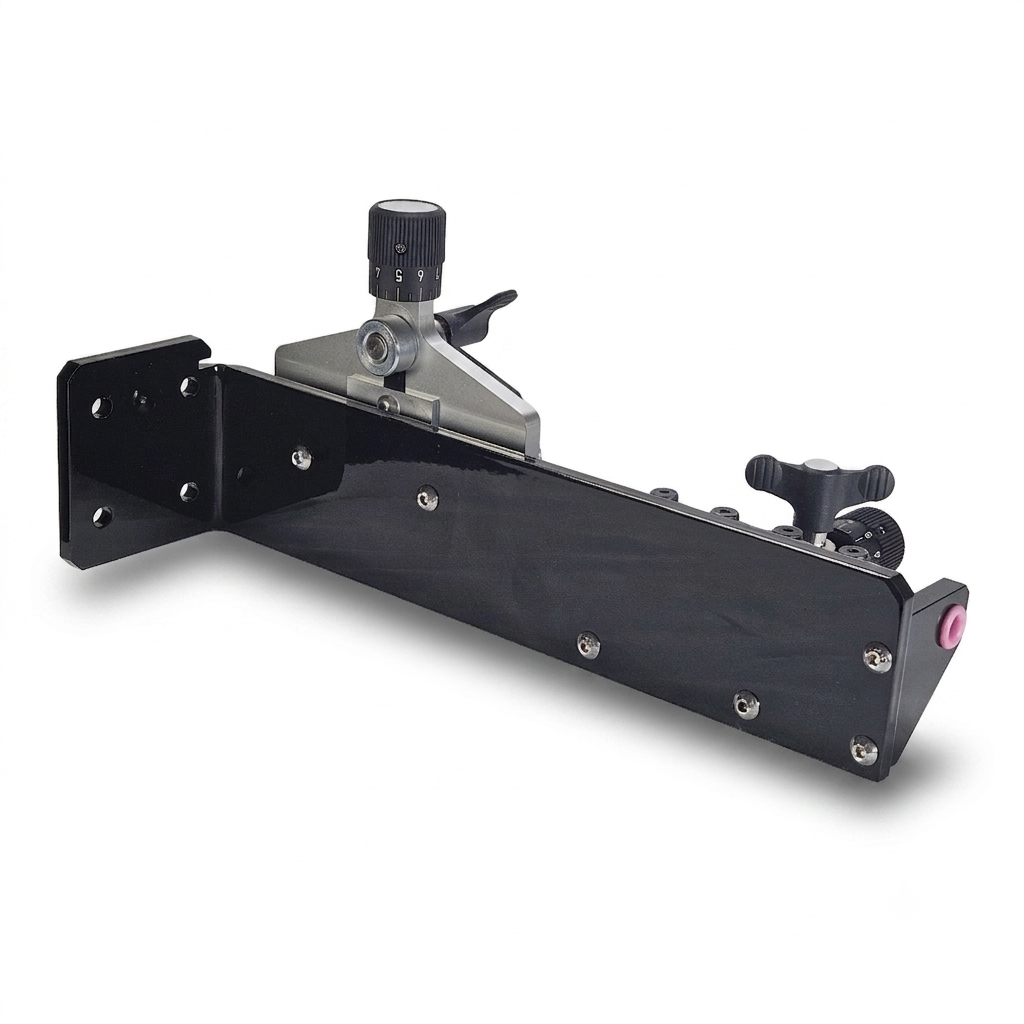

• Four mounting holes are available for direct mounting to your Schleuniger machine.
• Mount holes are for four M6 bolts spaced 40 mm on center.  Bolts are included.  See drawing with mounting dimensions below for detail.
• Compatible with Schleuniger Models such as the E300, E400,  ES9380, MS9480, and others with the same mount pattern.

Model: WS-18

Technical Specifications:

• Roll profile: 120° V Groove
• Number of rolls per plane: 9
• Number of planes: 2
• Minimum outer diameter: 1 mm (0.039”)
• Maximum outer diameter:
• Insulated: 4.5 mm (0.177”) OD w/ a max conductor size of 3 mm (0.118”).
• Bare: 3 mm (0.118”)

Documents:

• User Manual (PDF)
• Mounting Dimensions Drawing (PDF)
