J2X Systems LLC

Two Plane Quick Change Wire Straightener for Schleuniger Machines (WS-12)

Two Plane Quick Change Wire Straightener for Schleuniger Machines (WS-12)

Regular price $545.00
Regular price Sale price $545.00
Sale Sold out

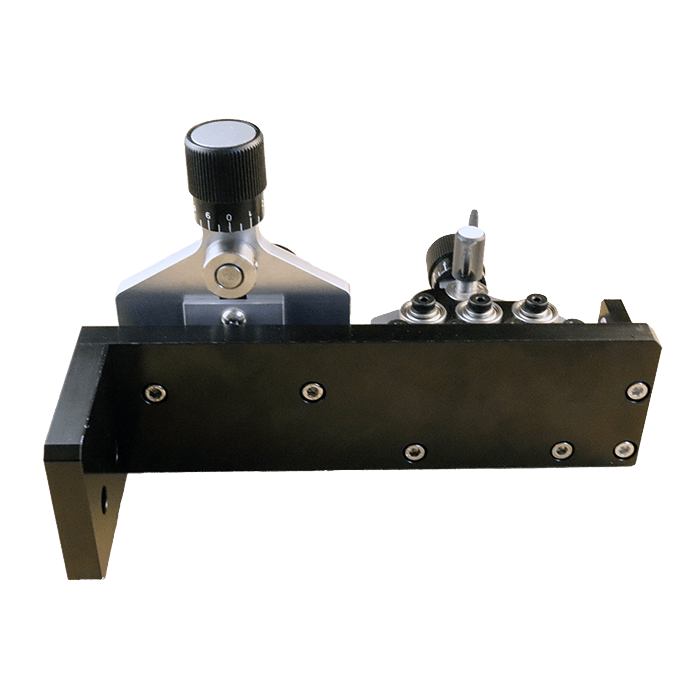

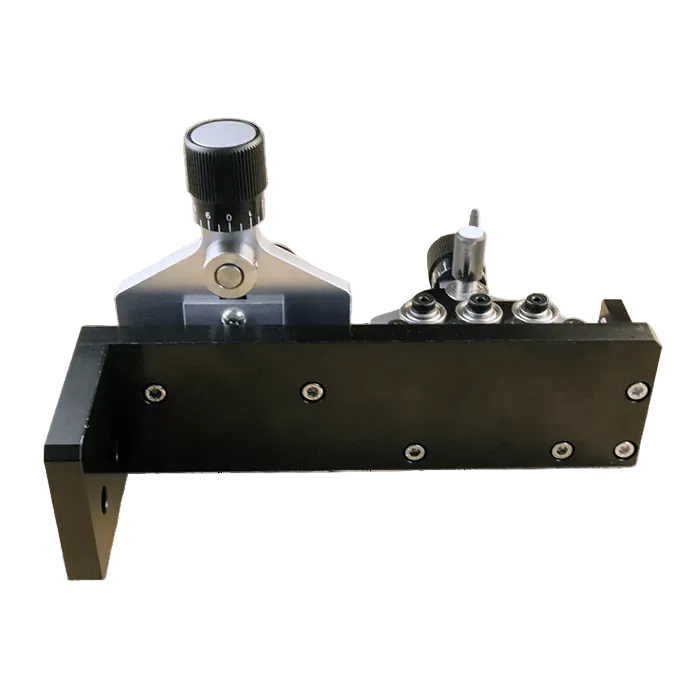

This wire straightener is designed to bolt directly to the existing holes on a Schleuniger cut and strip machine.

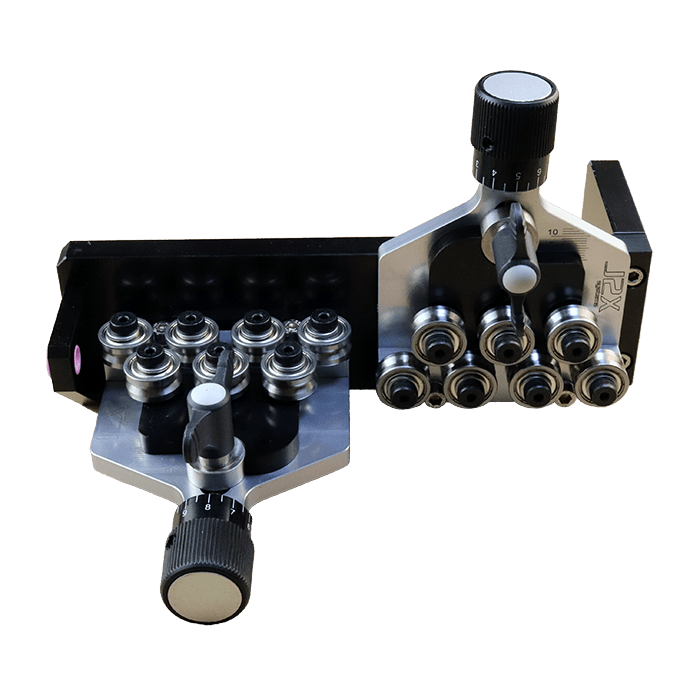

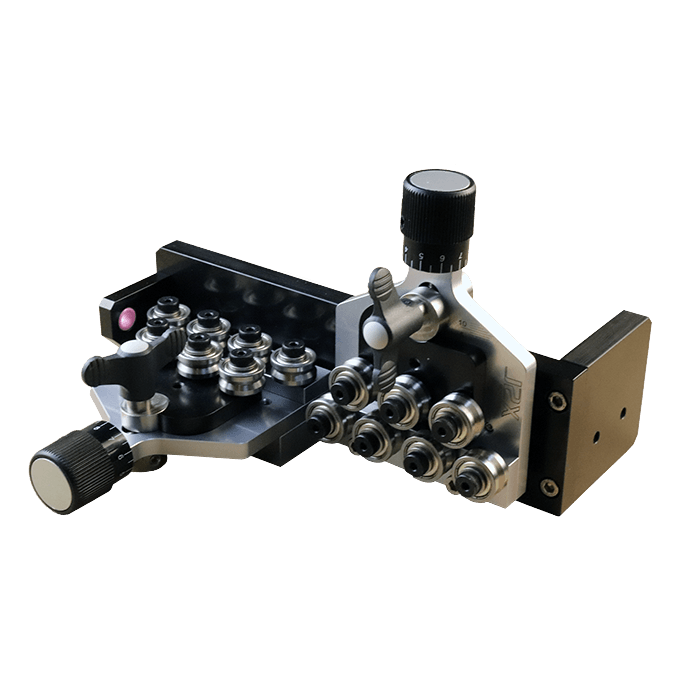

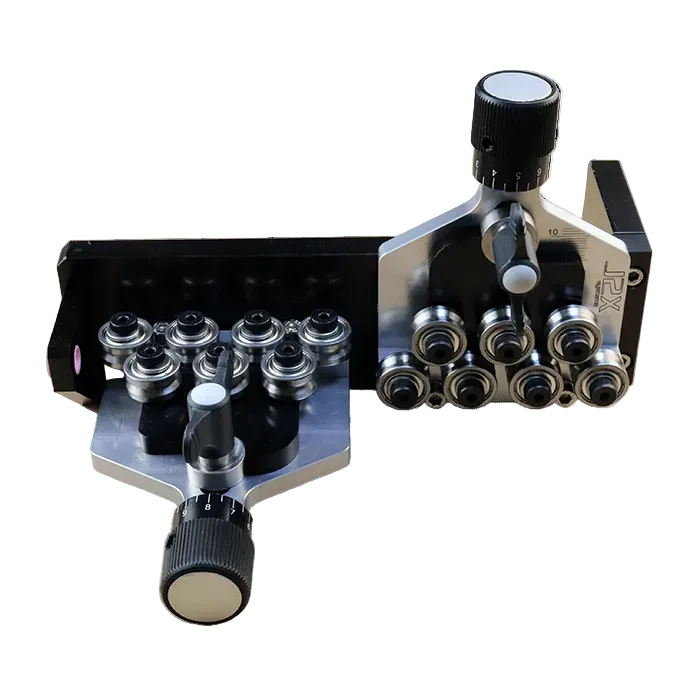

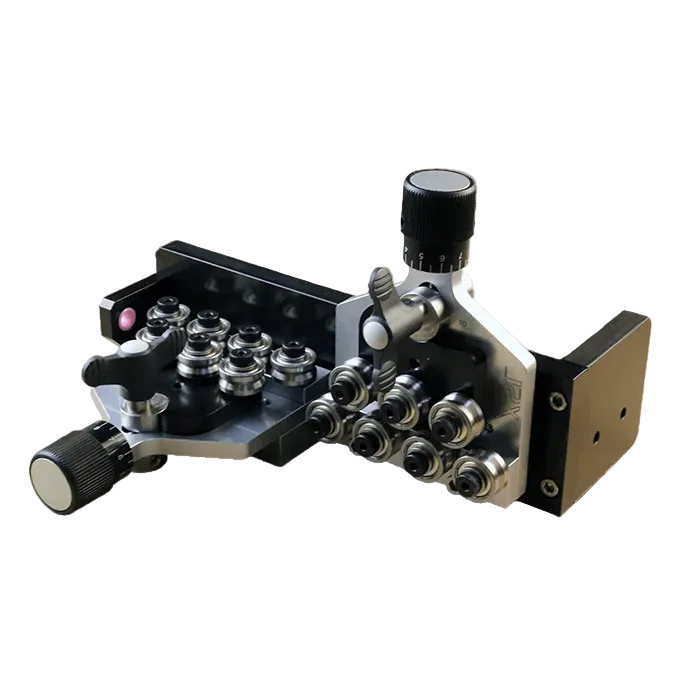

The straightener is a two plane, 7 roller per plane design with quick change capability.  It is suitable for mid-size wire and can be easily adjusted for multiple wire sizes.
The approximate range is 10-26 AWG, but actual capability will depend on your wire construction and outside diameter.

Design and capability details:

  • Entry point includes a ceramic insert for safe handling of your cable and durability of the guide.
  • Two mounting holes are available for direct mounting to your Schleuniger machine.
  • Mount holes are for M5 screws spaced 25mm on center.  Screws are included.
  • Compatible with most Schleuniger EcoStrip, PowerStrip, MultiStrip, OmniStrip, and CS models such as the PS9500, ES9300, ES9380, MS9480, CS9050 and others.

Model: WS-12

Technical Specifications:

  • Roll profile: 120° V Groove
  • Number of rolls per plane: 7
  • Number of planes: 2
  • Minimum outer diameter: 1mm (0.039”)
  • Maximum outer diameter:
    • Insulated: 4.5mm (0.177”) OD w/ a max conductor size of 3mm (0.118”).
    • Bare: 3mm (0.118”)
