J2X Systems LLC

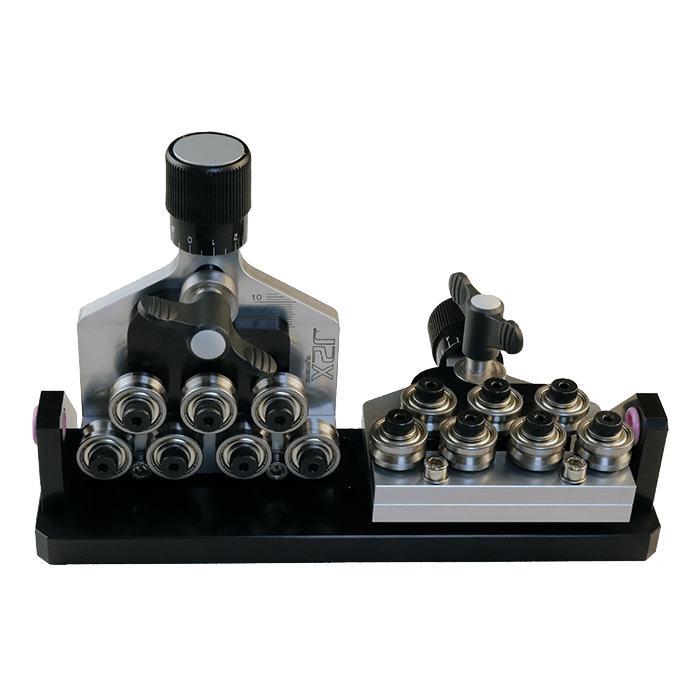

Two Plane Quick Change Wire Straightener (WS-15)

Two Plane Quick Change Wire Straightener (WS-15)

Regular price $535.00
Regular price Sale price $535.00
Sale Sold out

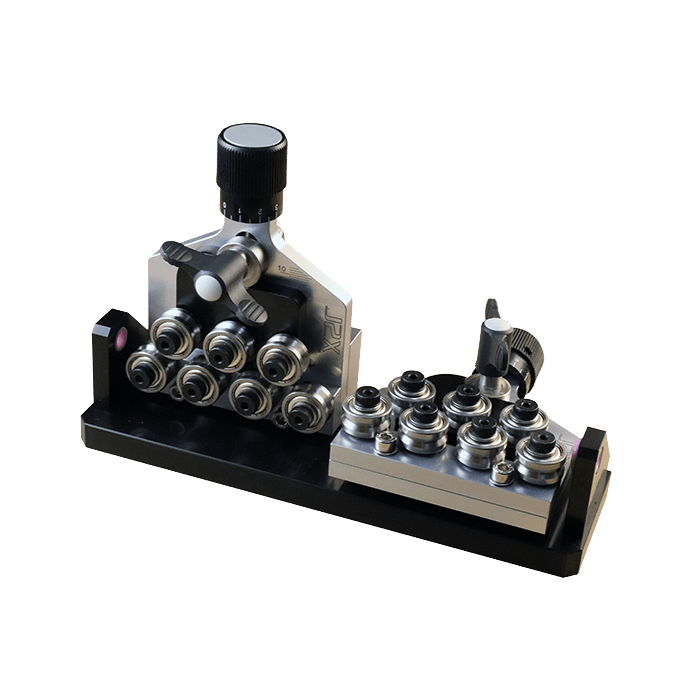

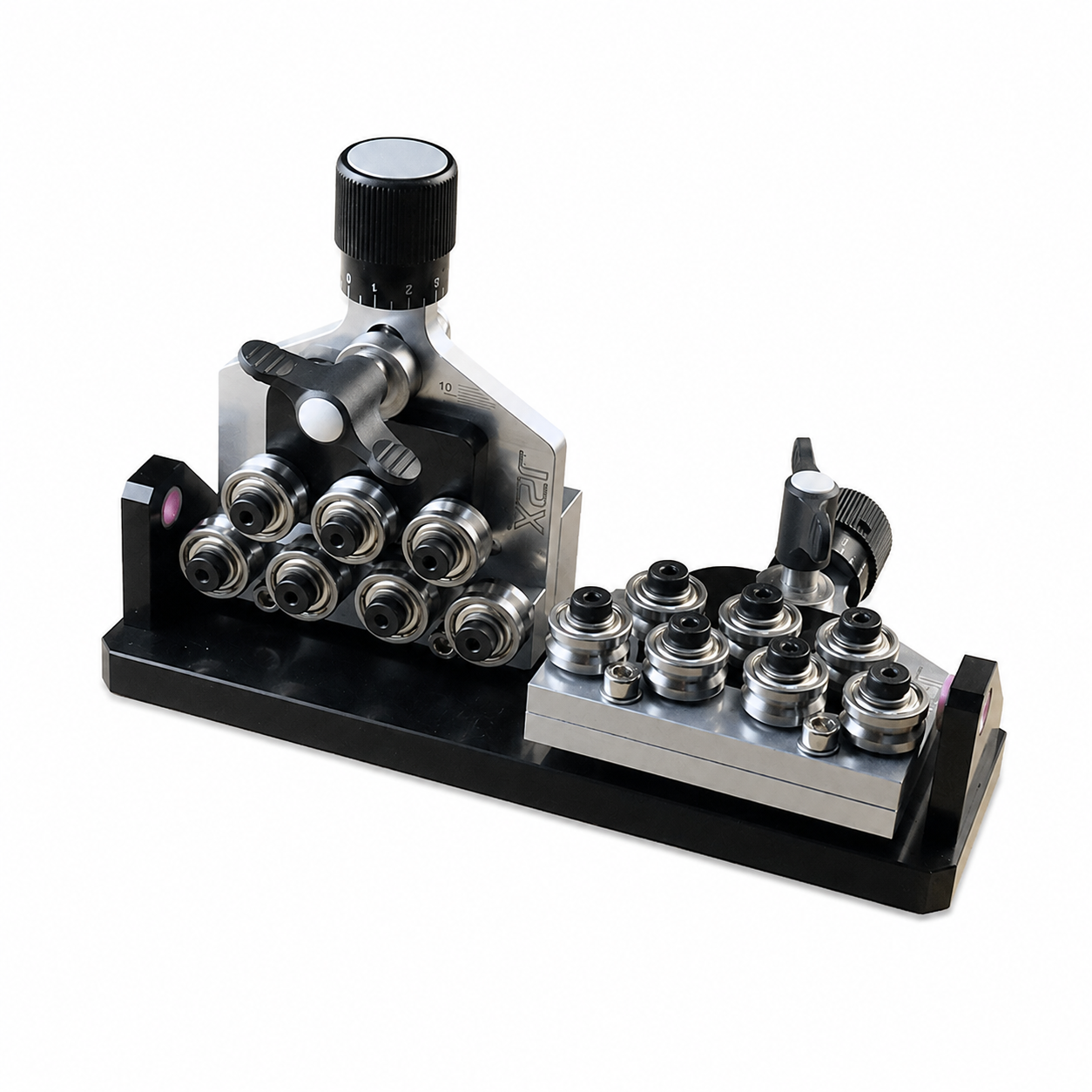

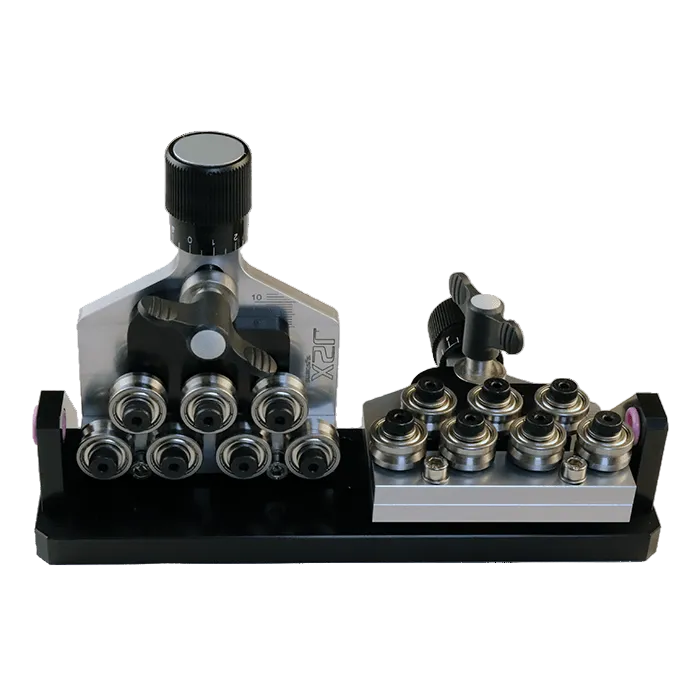

This wire straightener is a two-plane, 7 roller per plane design with quick change capability.  It is suitable for mid-size wire and can be easily adjusted for multiple wire sizes.
The approximate range is 10-26 AWG, but actual capability will depend on your wire construction and outside diameter.

Design and capability details:

  • Entry and exit points include ceramic inserts for safe handling of your cable and durability of the guide.

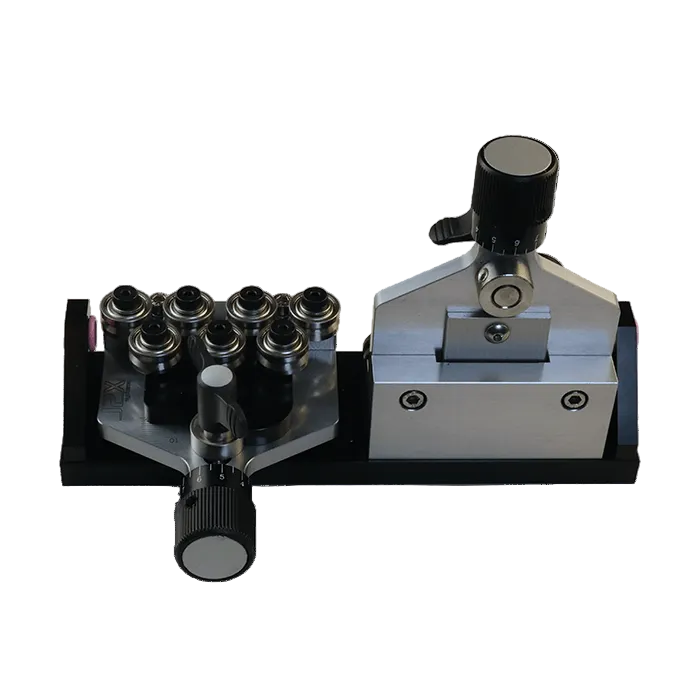

  • Two mounting holes are available between the planes if you should choose to base-mount the straightener.
  • The individual planes are Komax compatible and can be mounted on a Komax mount.
  • The straightener was designed for stranded insulated wire but can also be used with softer bare wire on the smaller end of the range.

Dimensions: Overall size is approximately 9" W x 2.5" D x 5.5" H.

Model: WS-15

Technical Specifications:

  • Roll profile: 120° V Groove
  • Number of rolls per plane: 7
  • Number of planes: 2
  • Minimum outer diameter: 1mm (0.039”)
  • Maximum outer diameter:
    • Insulated: 4.5mm (0.177”) OD w/ a max conductor size of 3mm (0.118”).
    • Bare: 3mm (0.118”)
