Single Plane Quick Change Wire Straightener for Schleuniger Machines (WS-06)

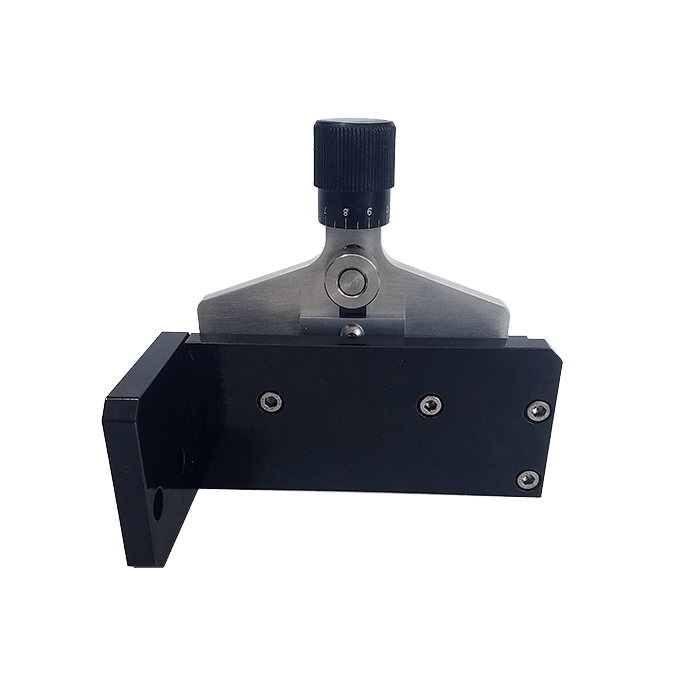

This wire straightener is designed to bolt directly to the existing holes on a Schleuniger cut and strip machine.

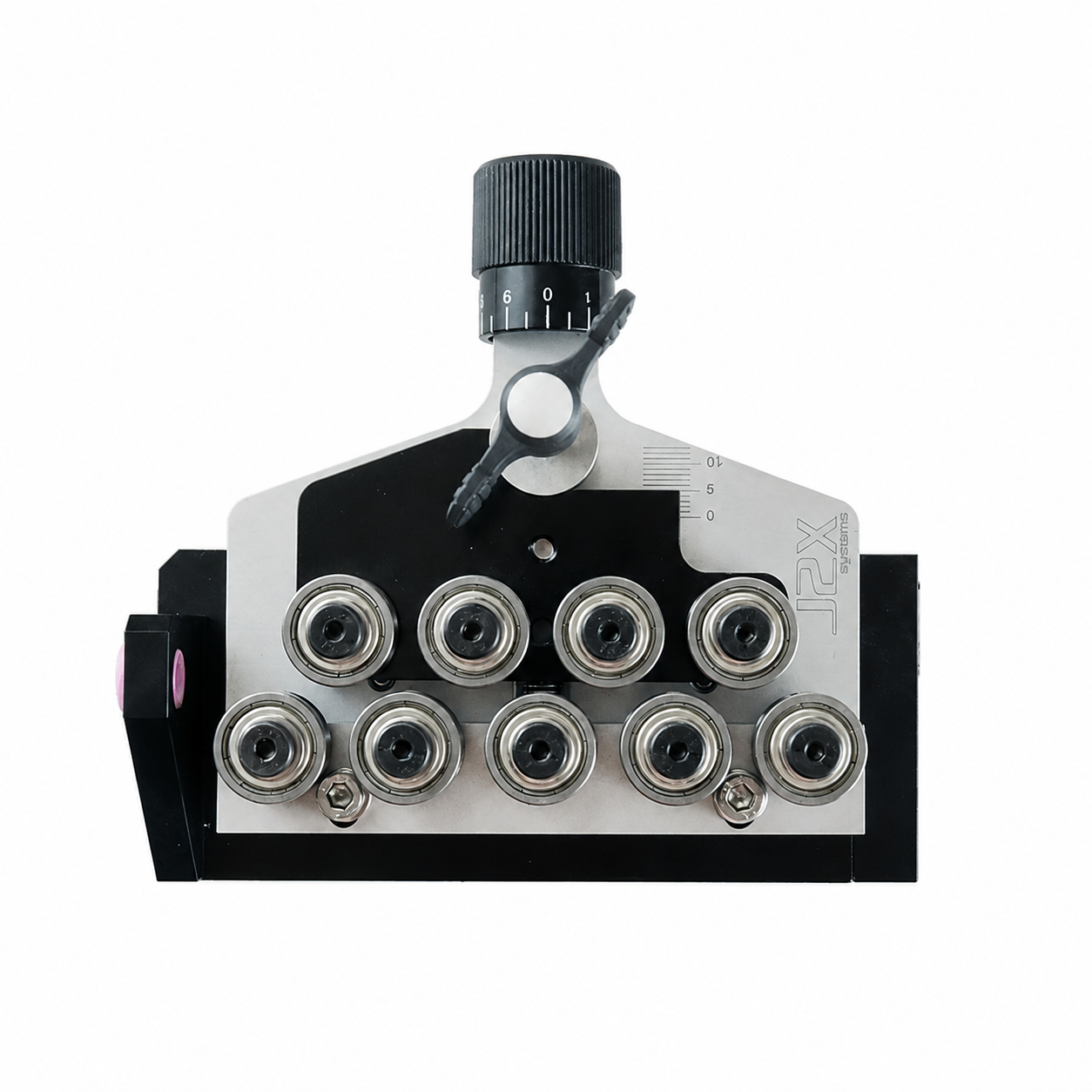

The straightener is a single plane, 9 roller design with quick change capability.  It is suitable for round, mid-size wire and can be easily adjusted for multiple wire sizes.
The approximate range is 10-26 AWG, but actual capability will depend on your wire construction and outside diameter.

Design and capability details:

• Entry point includes a ceramic insert for safe handling of your cable and durability of the guide.

Compatibility:

• Two mounting holes are available for direct mounting to your Schleuniger machine.  Mount holes are for M5 screws spaced 25mm on center.

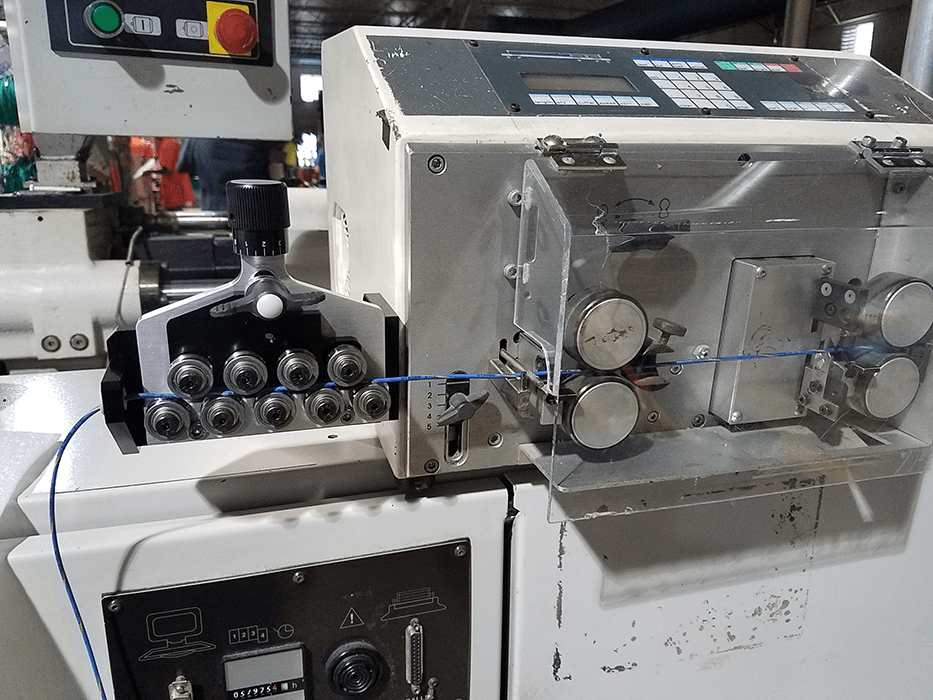

• Known compatible models: PS9500, EcoStrip 9300, CS9050.

If you would like to check compatibility of your Schleuniger machine, please send an inquiry to info@j2xsystems.com.

Model: WS-06

Technical Specifications:

• Roll profile: 120° V Groove
• Number of rolls per plane: 9
• Number of planes: 1
• Minimum outer diameter: 1mm (0.039”)
• Maximum outer diameter:

• Insulated: 4.5mm (0.177”) OD w/ a max conductor size of 3mm (0.118”).
• Bare: 3mm (0.118”)

Documents:

• User Manual (PDF)

• Drawing with Mounting Dimensions (PDF)
