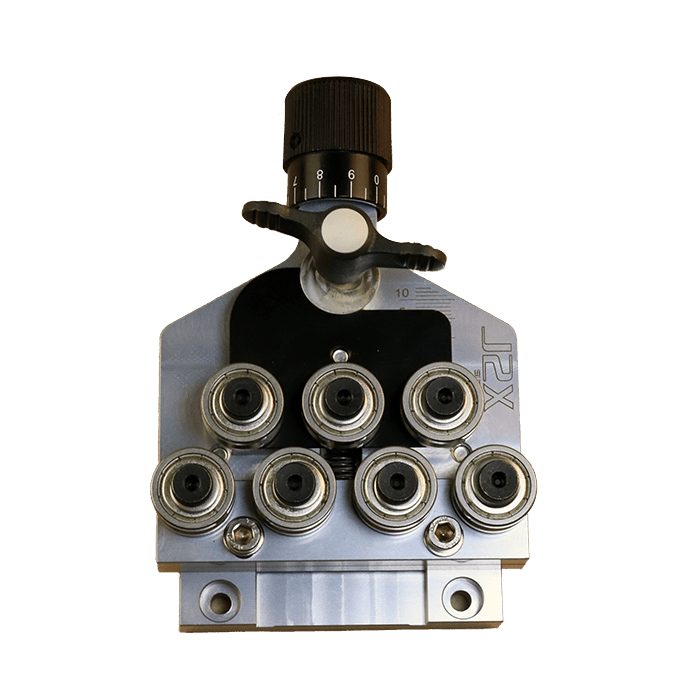

Single-Plane Quick-Change Wire Straightener for Komax Kappa Machines (WS-10-K) 7-Roll

This wire straightener is designed to bolt directly to the existing holes on a Komax Kappa cut and strip machine.

The straightener is a single-plane, 7-roll design with quick change capability.  It is suitable for mid-size wire and can be easily adjusted for multiple wire sizes.
The approximate range is 10-26 AWG, but actual capability will depend on your wire construction and outside diameter.

Compatibility:

• Two mounting holes are available for direct mounting to your Komax machine.
• M5 socket head cap screws are included.

Model: WS-10-K

Technical Specifications:

• Roll profile: 120° V Groove
• Number of rolls per plane: 7

• Number of planes: 1
• Minimum outer diameter: 1 mm (0.039”)
• Maximum outer diameter:

• Insulated: 4.5 mm (0.177”) OD w/ a max conductor size of 3 mm (0.118”).
• Bare: 3 mm (0.118”)

Documents:

• User Manual (PDF)
• Drawing with Mounting Dimensions (PDF)
